Product Details
＋

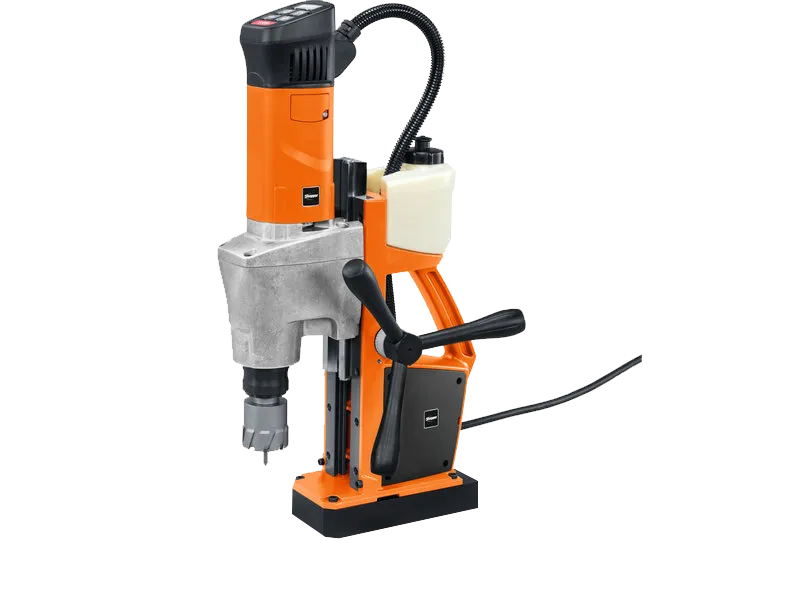

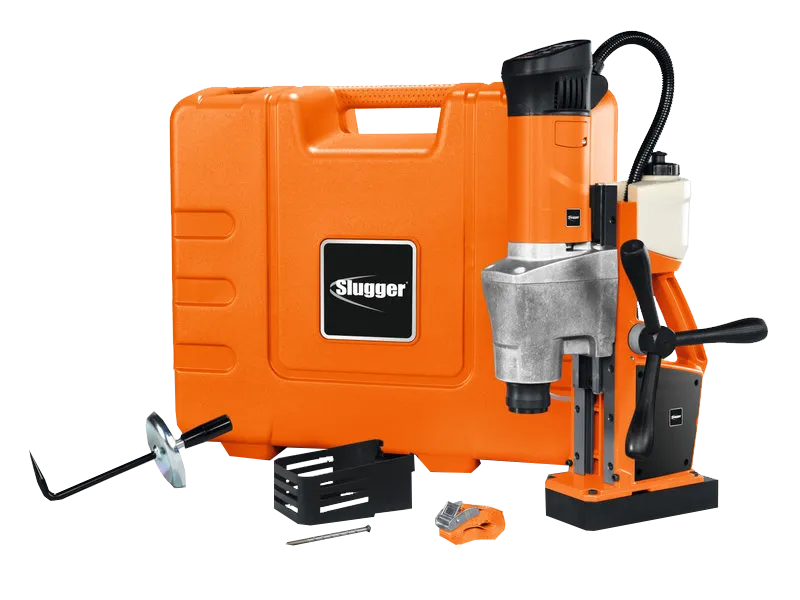

The Slugger JCM 200 Q is versatile in its range of uses and application. The drill features QuickIn system for quick keyless tool changes, devetail guides making for long drilling times, speed controlled tacho electronics, self-start lock, reversible, integrated cooling tank. It's designed with a 2-speed gearbox and simple use for adequate drilling in your workshop or work site. Check out the for more information.
- Cutter max. dia. in (mm)2 ¹/16 (52)
- Cutter max. drilling depth in (mm)2 (50)
- Twist drill max. dia. in (mm)5/8 (16)
- Countersinking max. dia. in (mm)1 ³/16 (31)
- Reaming max. dia. in (mm)5/8 (16)
- Power consumption Watts1,200
- Output Watts680
- Load speed
- 1st gear – slow rpm160
- 1st gear – fast rpm260
- 2nd gear – slow rpm320
- 2nd gear – fast rpm520
- Cutter holderQuickIN
- Stroke in (mm)5 5/16 (135)
- Total stroke range in (mm)12 ³/16 (310)
- Magnet holding force lbs (N)2,420 (11,000)
- Magnetic base dimensions in (mm)7 ³/32 × 3 9/16(180 × 90)
- Cable with plug ft (m)13 (3.8)
- Weight according to EPTA lbs (kg)28.2 (12.8)
