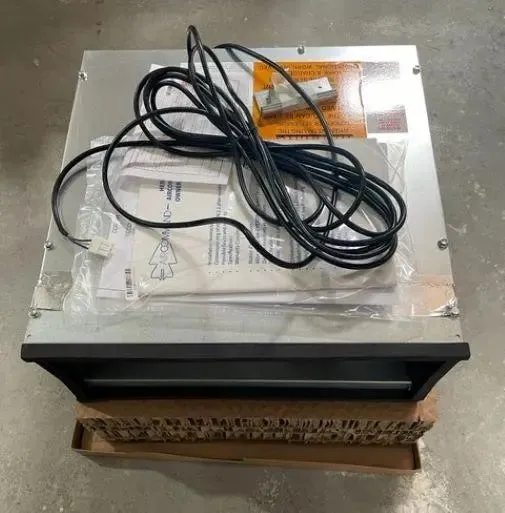

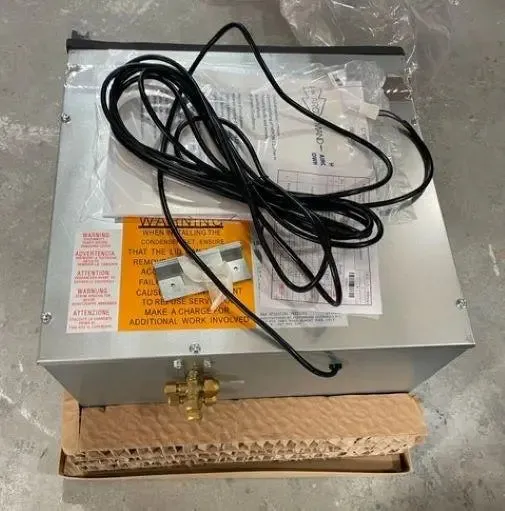

Dometic Heron 2.2 Split System Air-Con HERON2.2
This is a Brand new base unit (Condensor).
if your Heron 2.2 needs major parts like compressor then this may be a better option.
We have primarily brought these into stock to help people repair existing units. pipework (not included)
Packaging on this unit is looking a bit 2nd hand but it is brand new inside.
Pregassed units just needs connecting pipes.
- Does not include outside vents
- Does not include connecting pipes
- brand new items
- new old stock found in dometic warehouse
- does not include air handler or copper pipe
Condenser set:
- Height - 250 mm Above floor
- Width - 465 mm Depth - 440 mm
- Weight - 30 kg
Cooling output: 2.2 KW
Heating output: 1.5 KW
- Maximum current (cooling): 4.0 amps
- Maximum current (heating): 6.5 amps
- Maximum locked rotor current: 19 amps
Refrigerant: 407C Charge: 700 grms.
Fan (Condenser set):
- Resistance run wdg.: 168Ω
- Resistance aux wdg.: 150Ω
- Capacitor: 2.5 mfd. 440 vac
Air Command - Heron 2.2
The compact Heron range of efficient split system air conditioners. Australian designed and manufactured allows greater flexibility of installation.
Each model is composed of an evaporator (air handler) which is installed in a cupboard or overhead locker and a separate condenser that is usually fitted under a bed. They are able to provide year round comfort with their ventilation, cooling and heating modes.
The HERON 2.2 is suitable for insulated vans or motorhomes up to 17'6" (external) or pop top vans up to 16'6" (external). Compact in size with condenser's low profile enabling installation under beds and seats without increasing height.
Nominal Cooling Capacity: 2.7KW
