Product Speciality

1. The transformer core is made of high-tech material based on Nanotechnology.
2. The tri-proof (water, dust and eroding proof) cooling system raised the reliability and duty-cycle of the components.
3. Having the fan standby function.
4. With OCV as high as 70V, able to weld base and acid electrodes.
5. The duty-cycle is higher than 60% when the temperature of their operation surrounding is around 40. Capable to operate outdoors.
6. The maximum output efficiency is 85%. By using the advanced electro-circuit for power factor Compensation, the max power factor could be as high as a 0.93.
7. EMC electro-circuit added to reduce the pollution to the electric network.
8. With digital display of the welding current and remote control of option.
9. VRD function is added to meet the European requirement.

Specification

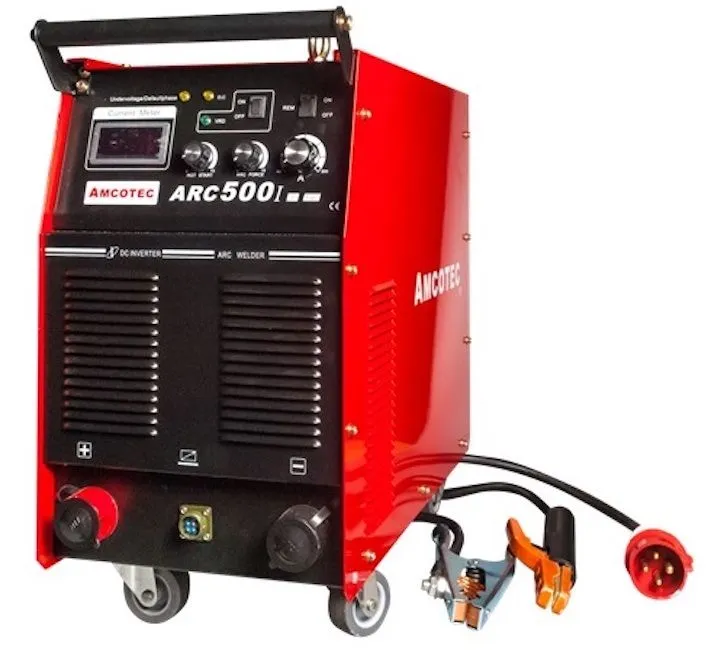

TYPE ARC500
Input Voltage 415 V, 3-PH, 50-60 Hz
Rated Input Current 38.4 Amp
Output Current Range 40-500 Amp
Duty Cycle 60%
Dimension with Weight 760 X 313 X 437mm
